Connection Congestion Trace

Understanding Client Message Rate Limits​

Official EMQX Documentation

The EMQX or MQTT protocols do not directly limit the rate at which each client can receive messages. However, when too many messages are received and cannot be processed by the client in time, the messages may get heaped up and eventually discarded. To ensure system stability and message reliability, it is recommended that each client subscribe to receive messages at a rate of no more than 1500 messages/second (1KB per message).

If the message receive rate exceeds this recommendation, you can use Shared Subscription to add multiple subscribers to spread the load and reduce the rate of messages received by a single subscriber.

From Is there a limit to the message receive rate for EMQX clients?

Consequences of High Receive Rates​

If a client consistently receives messages above its processing capacity, you may observe the following issues:

Mailbox Overflow Errors​

Logs may show warnings like check_oom_shutdown with reason mailbox_overflow, indicating the client's queue limit was exceeded, leading to disconnection:

[warning] clientid: sub-client1, msg: check_oom_shutdown, mfa: emqx_connection:check_oom/3(1137),
peername: 172.100.239.1:62110, username: admin, shutdown: #{max => 1000,reason => mailbox_overflow,value => 1211},
incoming_bytes: 2856, incoming_pubs: 168, policy: #{max_heap_size => 4194304,enable => true,max_mailbox_size => 1000}

Error logs may also appear:

[error] supervisor: {esockd_connection_sup,<0.45294.0>}, errorContext: connection_shutdown,
reason: #{max => 1000,reason => mailbox_overflow,value => 1211},
offender: [{pid,<0.45294.0>},{name,connection},{mfargs,{emqx_connection,start_link,[#{listener => {tcp,default},
limiter => #{connection => #{initial => 0,burst => 0,rate => infinity}},enable_authn => true,zone => default}]}}]

Reconnect Loops​

If the client is configured with clean session = false, upon reconnecting, it might immediately receive a large backlog of queued messages. This can instantly overload it again, causing another disconnection and potentially creating a persistent reconnect loop.

Connection Congestion Alarms​

The broker might raise conn_congestion alarms for the affected client:

connection congested: #{memory => 42760,message_queue_len => 0,pid => <<"<0.124008359.0>">>,
reductions => 35678,send_pend => 14573,peername => <<"172.31.2.162:58258">>,
sockname => <<"172.31.43.242:1883">>,buffer => 4096,high_msgq_watermark => 8192,
high_watermark => 1048576,recbuf => 235416,sndbuf => 332800,recv_cnt => 6,
recv_oct => 341,send_cnt => 51,send_oct => 674407,username => <<"appuser">>,
clientid => <<"APP_00000018774">>,conn_state => connected,connected_at => 1744752271372,
proto_name => <<"MQTT">>,proto_ver => 4,socktype => tcp}

Solution: Shared Subscriptions​

To effectively handle high-throughput topics without overloading individual clients, use Shared Subscriptions. This feature allows multiple clients to subscribe to the same topic pattern under a shared group name. EMQX then distributes the incoming messages among the clients in the group (e.g., round-robin), significantly reducing the message rate each individual client needs to handle.

Proactive Monitoring: Identifying High-Load Clients​

It's crucial to identify clients potentially experiencing high message rates before they cause problems. Monitoring individual client send and receive rates helps determine if Shared Subscriptions are needed for certain topics.

EMQX Guard Pro Trace Tool​

EMQX Guard Pro provides the emqx_ctl guard trace command-line utility for real-time client monitoring:

./bin/emqx_ctl guard trace

This will display a live-updating table of connected clients and their key metrics:

recv_rate

Key Metrics to Monitor​

  • SendRate (msg/s): Rate at which EMQX is sending messages to the client. Crucial for identifying overloaded subscribers.
  • ReceiveRate (msg/s): Rate at which EMQX is receiving messages published by the client.
  • DropSend (msg/s): Rate at which EMQX is dropping messages destined for this client (often due to Mailboxlen limits being hit). Indicates subscriber overload.
  • DropRecv (msg/s): Rate at which EMQX is dropping messages received from this client.
  • Mailboxlen: The current number of messages queued in the client's mailbox on the broker. High values indicate the client is falling behind.
  • Reduction: A measure of the client process's activity or busy-ness. Higher values mean the process is busier.
  • Connected: Timestamp when the client connected.
  • Disconnected: Timestamp when the client disconnected (relevant if tracking persistent sessions).
  • Pid: The client's internal process ID within EMQX.

Interacting with the Tool​

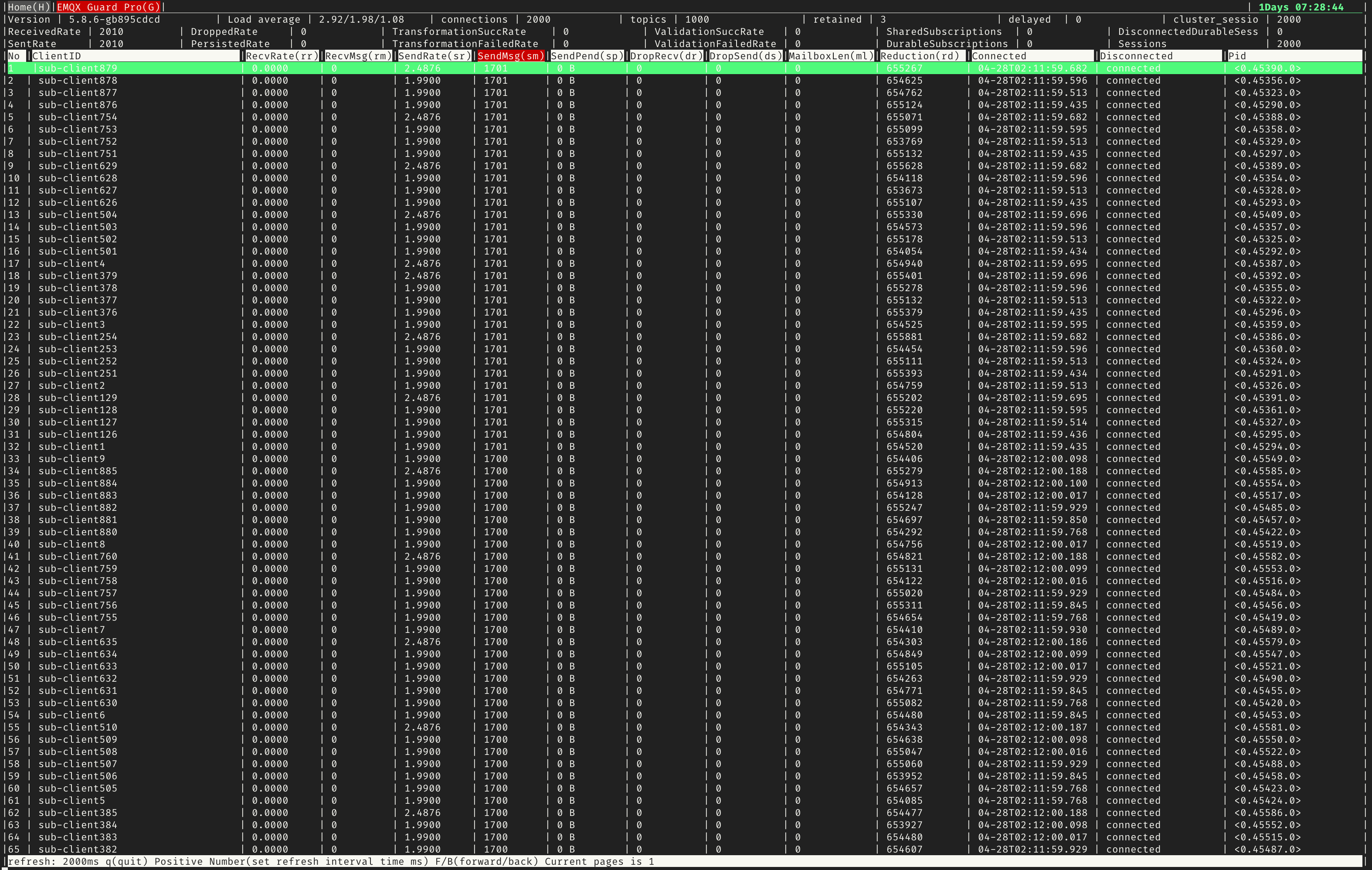

  • Sorting: You can sort the list interactively. For example, type sr and press Enter to sort by SendRate (descending), quickly highlighting clients receiving the most messages.

    send_rate

  • Exiting: Type q and press Enter to quit the tool.

Additional Metrics​

The tool also displays general system information:

  • Load Average: Operating system load average.
  • Connections: Total current client connections.
  • Topics: Total unique subscribed topics across all clients.
  • Retained: Number of retained messages stored by the broker.
  • Delayed: Number of messages currently scheduled for delayed publishing.
  • Cluster Session: Number of sessions managed across the cluster.
  • transformation_rate / validation_rate: Metrics related to the success/failure rates of EMQX's Rule Engine message transformations and schema validations.

By monitoring these metrics, especially SendRate, DropSend, and Mailboxlen for individual clients using emqx_ctl guard trace, you can proactively identify potential bottlenecks and implement Shared Subscriptions where necessary to maintain a stable and reliable MQTT service.
